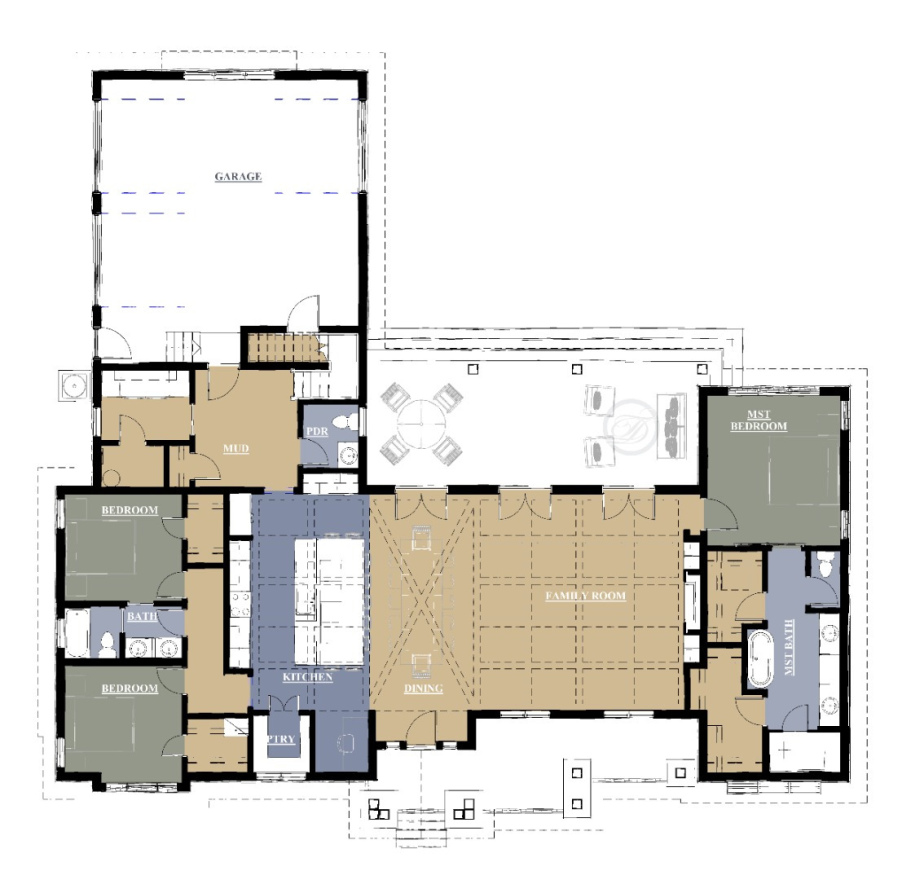

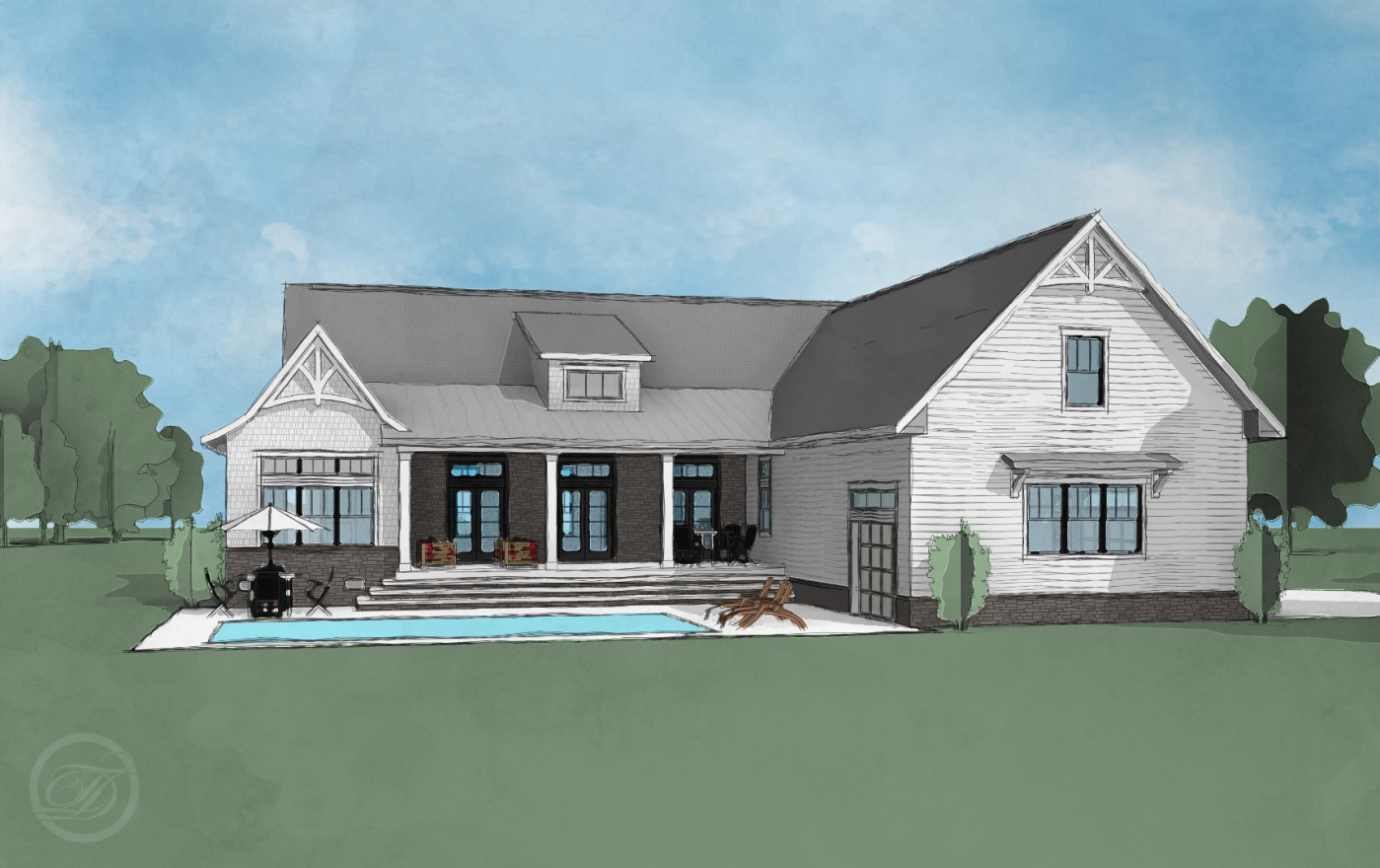

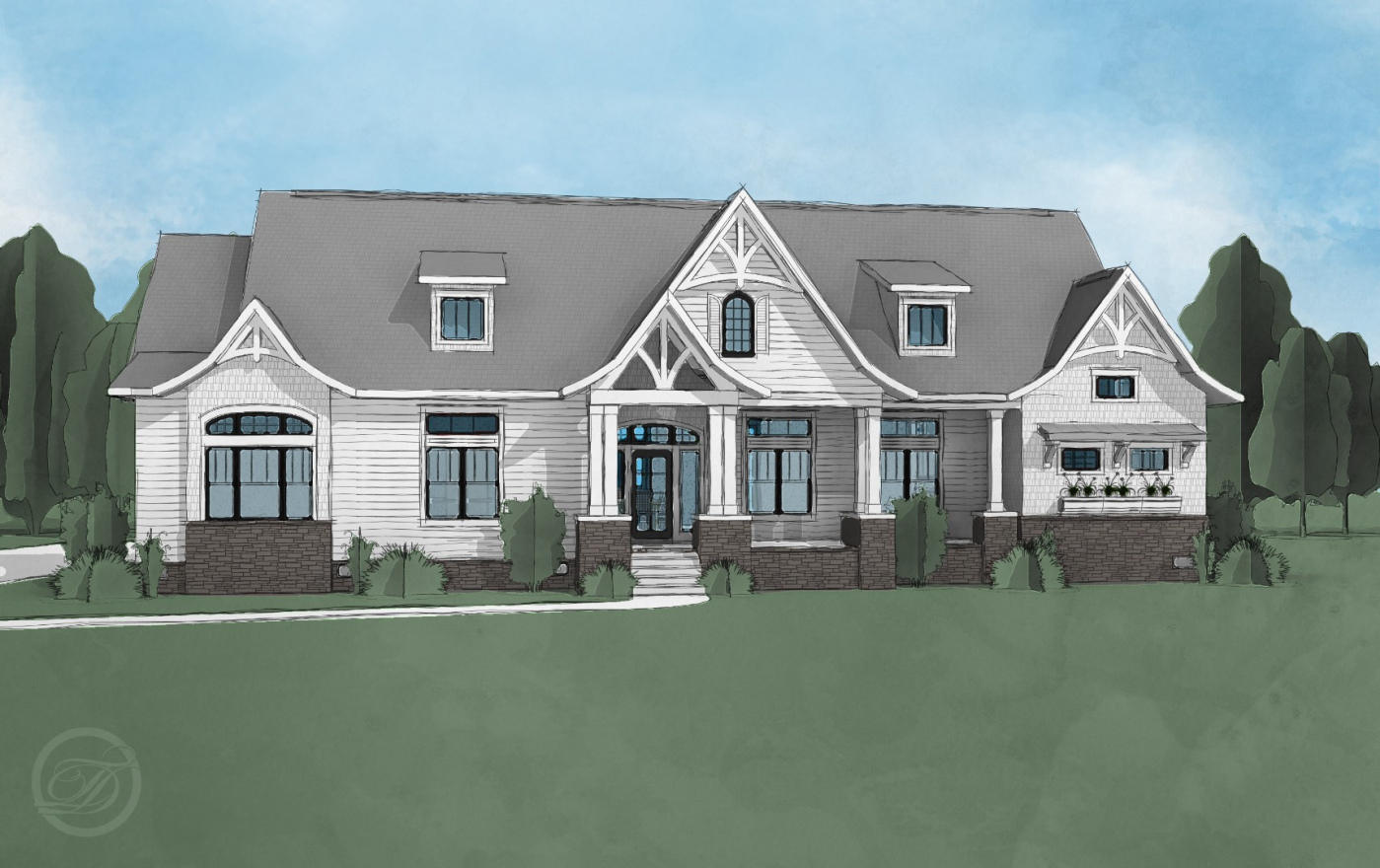

Jasper Lane
|
Category: |
Single Family Dwelling (Private Residence) |
|
SKU: |
190924 |
|
Bedrooms: |
3 |
|
Baths: |
2.5 |
|
Heated Square Feet: |
2825 |
|
Unheated Square Feet: |
1344 |
|
Total Square Feet: |
4164 |
|
Style: |
Farmhouse, Modern |
|
Levels: |
2 Story |
|
Covered Parking: |
Garage - 2 Car |
|
Width: |
76'-0" |
|
Depth: |
68'-0" |
|
Height: |
26'-6" |
|
Ceiling Height (Notes): |
9'-0", 10'-0", Vaulted ceiling (as indicated), Coffered ceiling (as indicated), Exposed Beams (as indicated) |
|
Roof Pitch: |
4:12, 12:12, 16:12 |
|
Roof Type: |
Gable, Shed (Skillion), Dormer |
|
Key Words: |

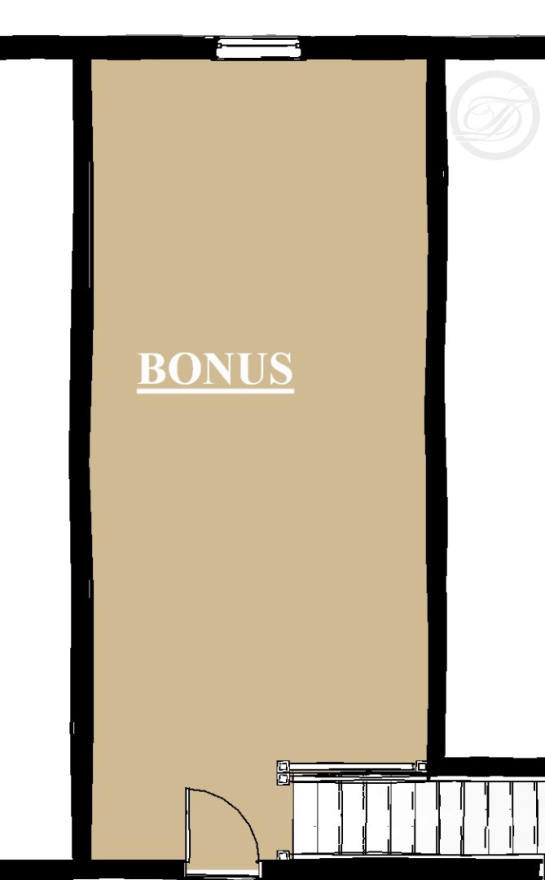

Attic Storage, Bonus, Fireplace - Gas, Mud, Office Nook, Pantry |
|
Foundation Type: |
Crawl Space Foundation |
|
Exterior Wall Type: |
2x6 Wood Studs |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description
Purchasing options for this design coming soon.
